Noise proof Windows
Careful design of the window node is essential in both renovations and new construction, as it must take into account all variables and ensure effective sound insulation.
Designing High Performance Noise Proof Windows

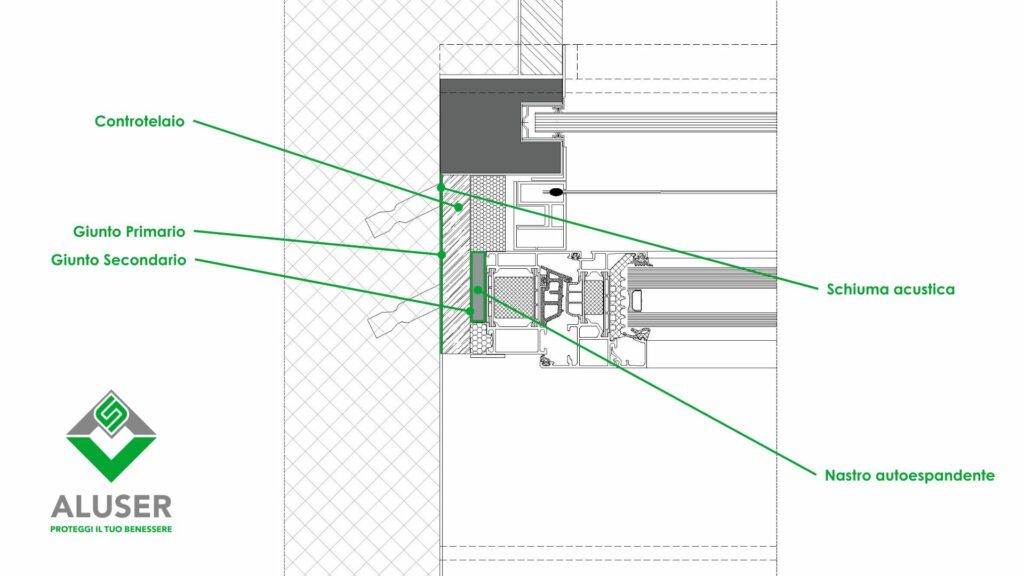

Noise penetrates where air passes through , so it is essential to have windows with high air tightness and to carefully study and seal primary joints (between masonry and counterframe) and secondary joints (between counterframe and window frame).
The type of glass also plays a crucial role: the use of laminated glass with acoustic films can absorb and reduce noise. Another aspect that should not be underestimated is the shutter box, which must be insulated and sealed to prevent it from becoming an entry point for noise.
Measurement of Sound Insulation
The ability of a window to reduce noise is measured in terms of sound reduction, expressed in decibel (dB). The higher the sound reduction value, the better sound insulation provided by the window.
An old window with a wood frame and single pane typically offers an Rw value around 25 dB. This level of sound insulation may be insufficient in noisy environments. In urban environments or near busy streets, it is advisable to use aluminum windows with an Rw value of at least 40 dB.
| Window sound insulation in decibels | Performance Rating |
|---|---|
| 25 db | Scarce |
| 30 – 38 db | Low |
| 38 – 42 db | Medium |
| 42 – 48 db | High |
| 48 – 56 db | Top |

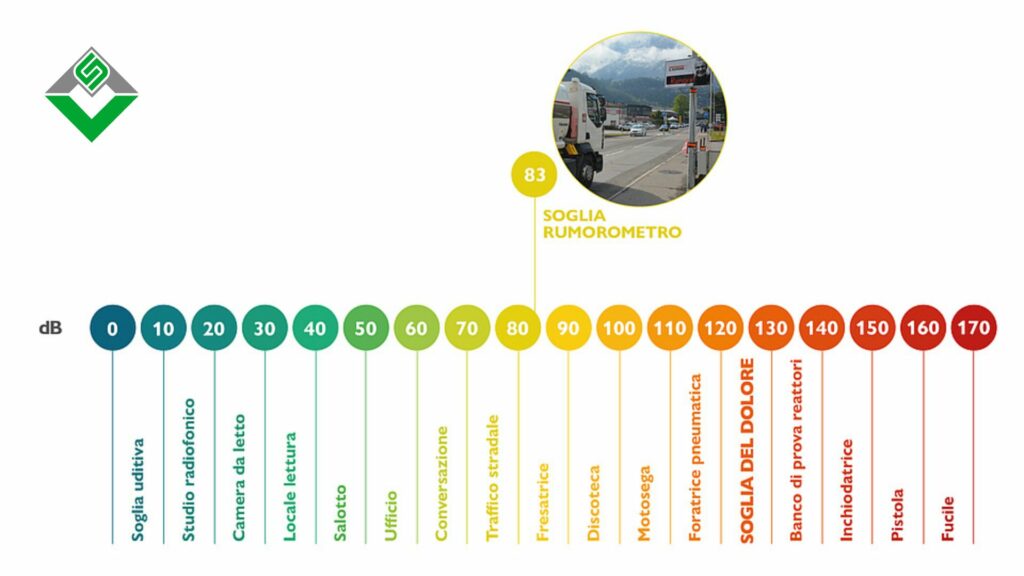

It should be noted that the decibel scale is logarithmic, so a three-decibel increase in sound level already represents a doubling of its intensity. For example, a normal conversation might be about 65 dB and a scream is typically 80 dB. The difference is only 15 dB, but the scream is 30 times more intense. By integrating different elements, you can create a significantly quieter and more comfortable living environment while protecting your interior from outside noise. Find out with Aluser about anti-noise windows for excellent sound insulation.
Special Ecobonus and Casabonus
CHARACTERISTICS OF NOISE PROOF WINDOWS
Which Profiles to choose?
The choice of materials for your soundproof windows can significantly affect the sound insulation of your home. PVC, wood or aluminum profiles with thermal break can play a significant role in sound insulation, depending on the model and quality.
Wood profiles offer excellent thermal as well as acoustic insulation properties. Wood is a natural material that has good mass and density, characteristics that help block noise. However, it requires regular maintenance to maintain its performance. PVC windows also offer good sound insulation due to their multi-chamber structure.
But if we want top-notch performance, comparable to recording studio insulation, there are certain thermal break Aluminum windows and doors that are the winning solution.
Gaskets are also critical in preventing noise ingress: multiple, high-quality gaskets can improve sound insulation. In addition, professional installation is essential. Even the most advanced window will lose its effectiveness if not properly fitted.
Choosing the right materials, careful design, and proper installation can make a big difference in a window's ability to block outside noise, improving comfort and quality of life inside buildings.
The importance
of a laminated glass
The type of glass has a significant impact on the sound insulation of your windows. The use of laminated glass with acoustic films can absorb and reduce noise. Double or triple glazing with cavities filled with inert gas, such as Argon, further improves sound insulation.
Acoustic insulation is partly determined by the mass of the glass. According to the principle of mass, heavier materials tend to block sound better. This means that glass with greater thickness and mass can provide better sound insulation than thinner glass.
So, using double or triple glazing, in which multiple panes of glass are separated by an intermediate layer of air or gas, can increase the overall mass of the window, thereby improving sound insulation.

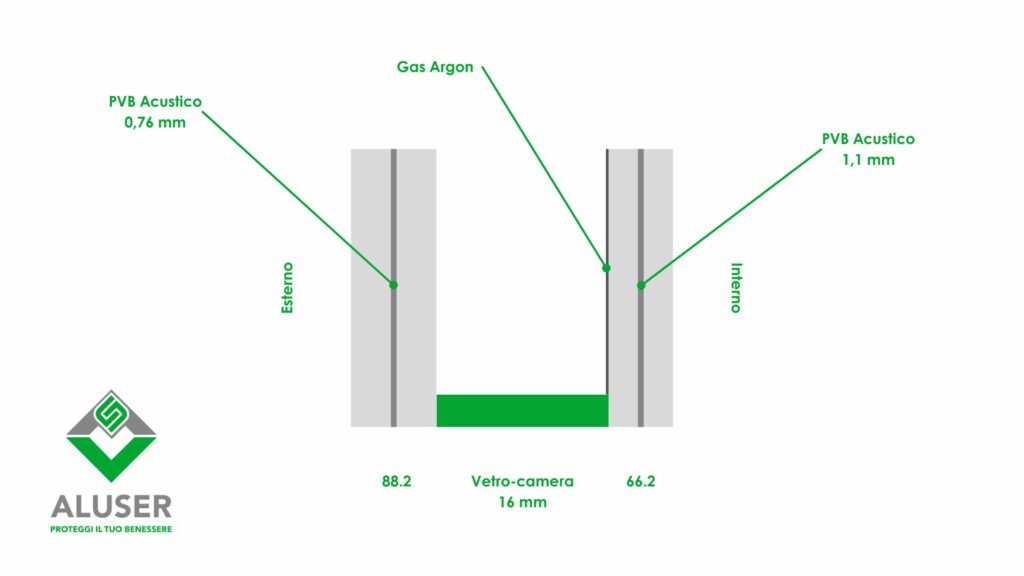

To increase the insulating qualities of glass, special films are inserted between the sheets, which, depending on the type used, can have a significant impact. Acoustic films, in particular, are designed to absorb and attenuate sound waves, improving sound insulation performance compared to traditional films.
One film often used is polyvinyl butyral (PVB), which not only improves the safety of glass in case of breakage, but also has excellent acoustic properties that help reduce noise transmission.
A final aspect to consider is the use of glass panes with different thicknesses and densities. This can disrupt sound frequencies, reducing the ability of sound to pass through the glass. This technique helps break up sound waves and decrease resonance, improving sound insulation.
Special attention
also paid to shutter boxes

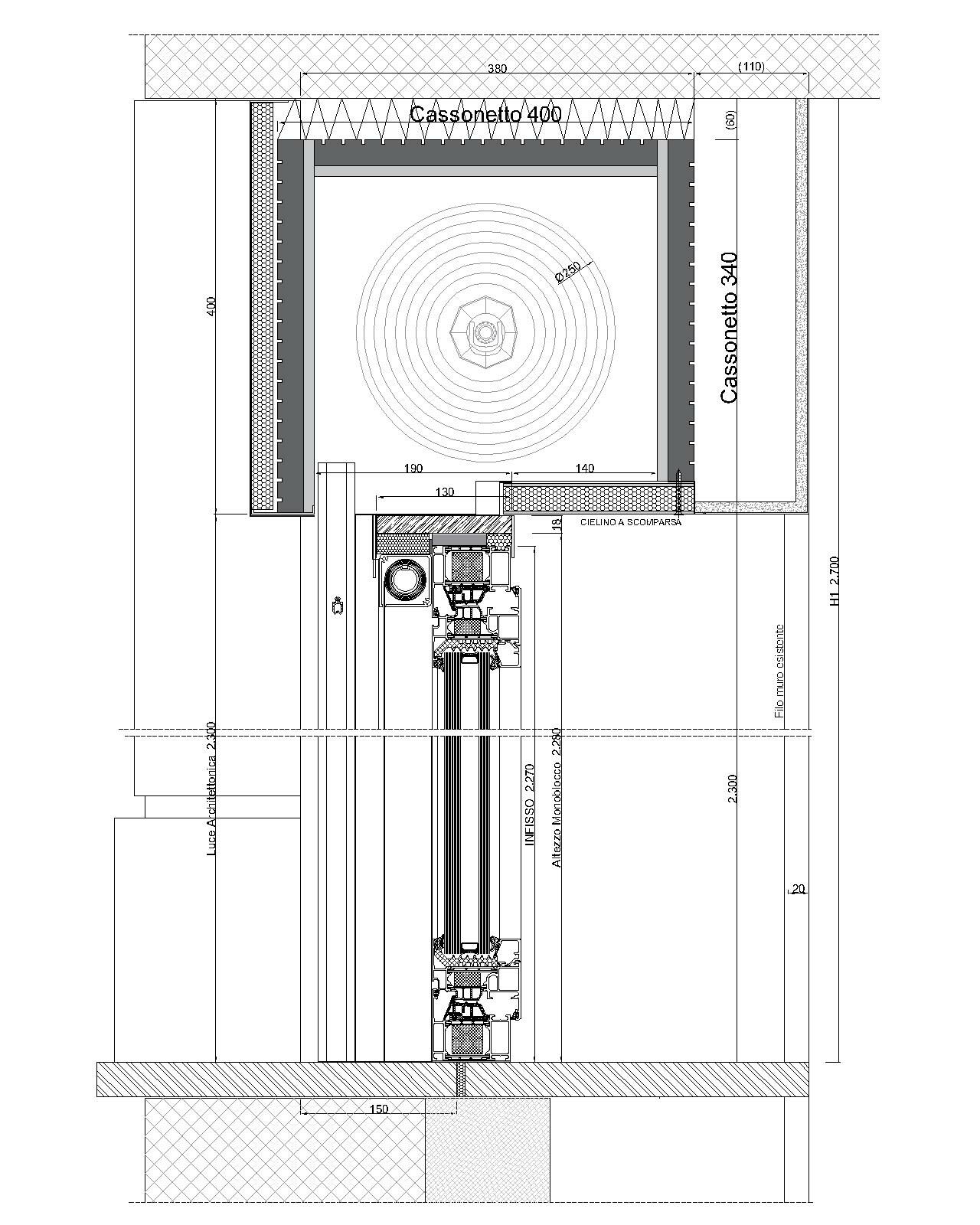

Roller shutter boxes can be one of the causes of external noise entering the home.
When you decide to replace the window frames in your home and opt for noise-proof windows, it is fundamental to consider all the components. Comprehensive design focused not only on the performance frame and laminated glass, but also special attention to the shutter boxes.
Aluser recommends selecting and installing boxes that hermetically insulate and that are made of acoustically insulating materials to prevent them from becoming entry points for noise.
The combination of all these features makes it possible to design anti-noise windows and boxes that effectively reduce sound transmission, improving comfort and quality of life inside buildings.
Quality Installation
for Noise proof Windows
Excellent installation, combined with the use of self-expanding tapes and insulating foams, is essential to ensure that soundproof windows maintain their maximum performance over time.
Even the best window, with the most advanced technologies in terms of sound insulation, will lose much of its effectiveness if it is not installed properly.
Sound bridges are weak points through which noise can penetrate. Effectively sealing all joints and contact points between the window and the wall eliminates sound bridges and significantly improves sound insulation, helping to create a quieter and more comfortable environment within the home.
To achieve excellent results in sound insulation, it is essential to rely on qualified professionals who can accurately assess the status quo of windows and facades. Through a detailed analysis of the envelope, the team of experts can identify critical points and propose specific solutions for each case.
Simply replacing windows is not enough to solve noise problems, as sound propagates in several ways through the entire building structure. Replacing windows and doors can have a much greater impact on the insulation of the complete façade than redoing the exterior walls.
We at Aluser have often been involved in solving acoustic problems in both private residences and hotel settings, where room soundproofing is critical to the well-being of the occupants. With our experience and expertise, we are able to offer targeted advice and effective solutions to ensure optimal soundproofing.
Aluser's experience at your service
Each Aluser window is unique, designed to customer's specifications, customised in every detail, from the finish to accessories such as security systems. The masterful positioning service at work will guarantee the performance of the new windows and doors, for real energy savings.
Aluser not only takes care ofproduction and installation, but is also available to customers for maintenance or other post-sale requirements.
